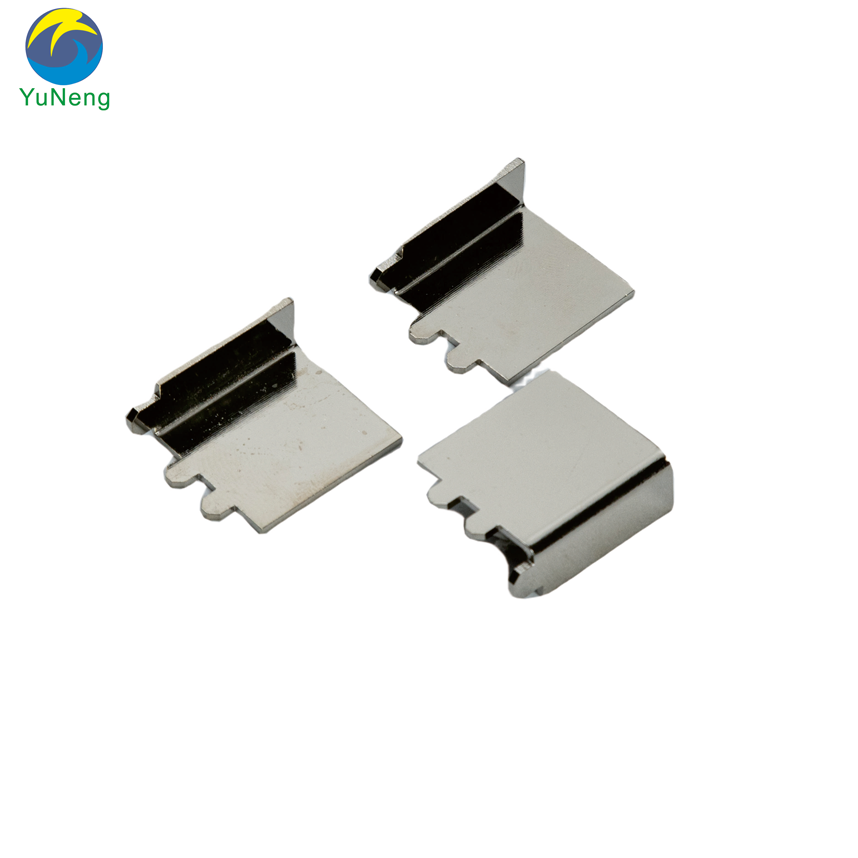

Shielding Plate Stamping Parts: A Key Component in the Electronics Industry
In modern electronic devices, Electromagnetic Interference (EMI) has become an issue that cannot be ignored, especially in terms of signal transmission and device stability. To tackle this challenge, many electronics manufacturers rely on Shielding Plate Stamping Parts to effectively prevent interference and enhance the performance of their devices. This article explores the key features of these custom parts, their application fields, and how they provide reliable EMI shielding across multiple industries through precise manufacturing techniques and material selection.
EMI Shielding: Protecting Electronic Devices from Interference
In communication devices, EMI issues are particularly prominent. To ensure stable operation in complex electromagnetic environments, electronics manufacturers must take measures to protect devices from external interference. For instance, Intel uses custom shielding plates in the development of their processors to reduce external noise that might affect signal transmission, ensuring device stability even in high-frequency environments. Similarly, Ford Motor Company utilizes highly conductive shielding plates in the electronic systems of their smart vehicles to suppress electromagnetic interference, ensuring smooth operation of the internal systems.
According to research from IEEE Xplore, EMI shielding plates can reduce interference by more than 90%, providing the essential signal stability for a wide range of electronic devices. Whether it's high-frequency communication equipment, computer motherboards, or automotive and aerospace electronic systems, shielding plates play a crucial role in safeguarding the performance and reliability of these products.
Precision Manufacturing and Material Selection: Ensuring Long-Term Reliability
Choosing the right materials and manufacturing processes is key to the design of shielding plates. Common materials for these parts include stainless steel, aluminum alloys, and copper alloys. 304 stainless steel, for instance, is widely used in applications with stringent requirements due to its excellent conductivity and corrosion resistance. In the 1GHz frequency band, this material can achieve a shielding effectiveness of over -50dB, making it suitable for most electronic applications.
In addition to material selection, the manufacturing process plays a crucial role in ensuring the quality of shielding plates. Through precise stamping techniques, manufacturers can control the part’s dimensional tolerance to as fine as ±0.05mm, ensuring consistency and accuracy across each piece. For example, Texas Instruments employs this precision stamping process in the production of shielding plates for their analog signal processors. By using high-precision manufacturing, they ensure that each component fits perfectly during assembly, preventing performance issues caused by dimensional deviations.
Customization Services: Tailored to Specific Needs
Unlike traditional off-the-shelf products, Shielding Plate Stamping Parts often require custom design based on the specific needs of the client. Different electronic devices or systems have varying requirements depending on factors such as operating frequency, signal strength, and external environments. As a result, customization services are essential in the production of shielding plates.
For example, Huawei uses custom shielding plates in the construction of their 5G base stations. To address the unique electromagnetic environments of different regions, Huawei designs tailored shielding solutions for each base station, effectively preventing external interference from affecting communication signals. According to a report from Market Research Future, the demand for customized shielding solutions is growing rapidly, with the market expected to expand by more than 12% over the next five years.
Wide Application: EMI Shielding Across Multiple Sectors
The use of shielding plates extends far beyond consumer electronics, encompassing industries such as telecommunications, automotive, healthcare, and aerospace. In healthcare, for example, GE Healthcare uses custom shielding plates in its MRI machines to protect the equipment from external electromagnetic interference, ensuring high-quality imaging results. The use of these shielding plates allows the devices to operate smoothly in complex electromagnetic environments and extends their operational lifespan.
In the automotive sector, the electronic systems of electric and smart vehicles require robust EMI protection. Ford Motor Company, for instance, uses a combination of aluminum alloys and stainless steel shielding plates in its smart cars, reducing the overall weight of the vehicle while still providing strong EMI shielding.
Cost Efficiency and Production Efficiency: Optimizing the Manufacturing Process
Cost control and production efficiency are two key factors in electronic product manufacturing. By using stamping techniques to produce shielding plates, manufacturers can significantly increase production efficiency while maintaining high-quality standards. For instance, Samsung uses automated stamping production lines to manufacture shielding plates for its smartphones, greatly enhancing production efficiency. One production line can produce up to 10 shielding plates per minute.
According to Frost & Sullivan, stamping techniques can reduce production costs by 20%-30% compared to other traditional manufacturing methods. This advantage makes shielding plates highly cost-effective, especially in products that require large-scale production.
Durability: Withstanding Harsh Environments
In some extreme environments, shielding plates must not only offer high electromagnetic shielding performance but also endure long-term physical and chemical stresses. For example, Intel uses shielding plates in its server hardware that must withstand high temperatures and prolonged use in harsh conditions. Even at temperatures as high as 85°C, these shielding plates maintain stable EMI shielding performance, ensuring the long-term reliability of the equipment.
NIST (National Institute of Standards and Technology) testing data shows that after 1,000 hours of salt spray corrosion testing, the performance of the shielding plates remains unchanged, demonstrating their outstanding durability.
Conclusion
As electronic devices continue to advance toward higher performance and greater integration, the importance of EMI shielding becomes ever more critical. Through precise manufacturing processes, high-quality materials, and customized design, Shielding Plate Stamping Parts play a vital role in a wide range of industries. Whether in communication devices, automotive electronics, healthcare equipment, or consumer electronics, shielding plates provide the stability and protection required for reliable operation. With ongoing technological advancements, it is expected that the demand for custom shielding solutions will continue to rise, making them an indispensable part of the electronics manufacturing industry.
